Fixed Mount Embedded Barcode Scanner White QR Code Reader Wiegand

Product Categories
Shenzhen Yuanjie Information Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

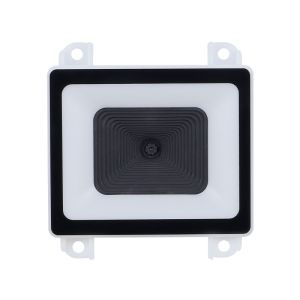

Fixed Mount Embedded Barcode Scanner White QR Code Reader Wiegand

Brand Name : YJFIRST

Model Number : YJ-ES228

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : $30

Payment Terms : T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union

Supply Ability : 20000pcs/month

Delivery Time : 3-7 work days

Packaging Details : Gift box

Product name : Embedded Barcode Scanner

software development kit (sdk) : Yes

color : White

Interface : USB,USB Virtual Serial,TTL,RS232,Wiegand,RS485

Size : 6.1*6.5*2.6cm

Hardware configuration : 1/30 second, with shell, with transparent screen

Contact Now

Fixed Mount 2D Barcode Scanner Module Wiegand RS485 USB RS232 for Kiosk Access Control Interactive Board

Product Definition

YJFIRST embedded QR Code module ES228 are widely used in self-service applications. The scanning and decoding

efficiency is becoming more important for smart terminals, kiosk and vending machine solution providers.The design of

ES228 is for easily integration into all kinds of kiosks to read 1D to 2D printed on paper, card and on-screen barcode fast

and accurately. Read all bar codes good under the sunlight or dim light environment.

Product Applications

This is an embedded barcode scanner. It can be applied in various scenarios. In retail stores, it can be embedded in self -

checkout counters, allowing customers to quickly scan product barcodes for payment. In logistics warehouses, it can be

integrated into sorting equipment, enabling automatic scanning and identification of package barcodes during the sorting

process. In hospitals, it can be embedded in medical equipment management systems to scan barcodes on medical

supplies for inventory management and usage tracking.

Products Description
Acquisition Performance
Sensor
Image Type,CMOS Sensor, 640*480 Pixel
Acquisition Speed
1/120 fps
FOV
Diagonal 84°,Level 72°,Vertical 54°
Reading Performance
Precision
2D≥7.5mil,1D≥5mil
Reading Mode
Close to the barcode,0-30cm(According to the different barcode)
Code 128 10mil 18bytes Paper Code 40~150mm
Code 128 18bytes Phone Code 40~160mm
QR 10mil 160bytes Paper Code 30~100mm
DM 15mil 100bytes Paper Code 30~120mm
QR 18bytes Phone Code 30~200mm
Scan Angle
Roll 360°,Pitch ± 55°,Skew ± 55°
Symbologies
2D code: QR Code, Data Matrix, PDF417, Chinese sensible code, etc.
1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,
Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc.
Print Contrast
20% minimum reflectance
LED
Illumination
White LED
Physical Parameter
(L×W×H)
61mm×58mm×25.2mm
Weight
about 50g
Interface
Socket
Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
12pin 0.5mm Pitch FPC socket, up and down compatible.
Interface
RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL
5 PIN: USB serial port or USB KBW (3.3V or 4-16V power)
5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power)
12 PIN: UART/USB(3.3V)
Scanning Mode
Command Mode/Sense Mode/Auto Reading Mode
Notification
Green LED, Beeper
Environmental Parameter
Operating Temperature
-30℃ ~ 70℃
Storage Temperature
-40℃ ~ 80℃
Humidity
5% ~ 95% RH (non-condensing)
Ambient Light
Max.100,000 Lux
Electrical Parameter
Input Voltage
Input with 5-pin or 12-pin FPC:
the voltage 3-3.6V or 3.6-16V (optional)
Operating Current
<200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input)
Standby Current
<5mA(3.3v Input)
Company Profile
Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner
manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience
in the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD
barcode scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning
platforms, and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics,
supermarket, retail, medical, postal communication, office automation, manufacturing and other fields.
We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.
Exhibition
Applications
Transportation
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for
more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you
provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient,
expliantion by email or call in time.
